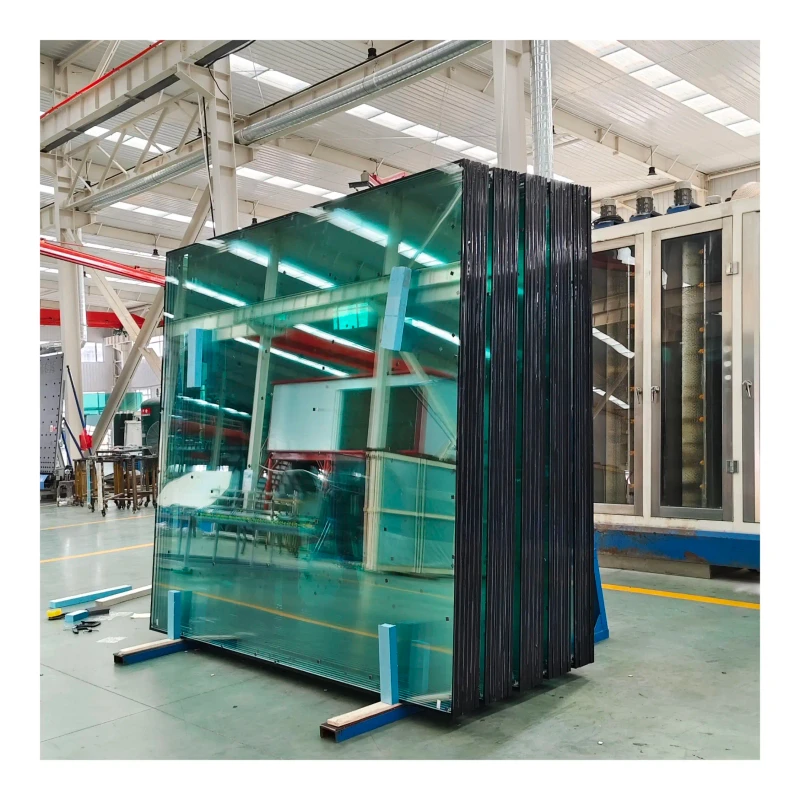

Triple Glazed Insulated Glass Units Low E Argon Krypton Gas Filled Warm Edge Spacer for Energy Efficient Home
We offer high-standard customization services to ensure each product meets your specific requirements, making us a trusted supplier for your architectural glass needs.
Dimensions: Customizable according to client requirements, OEM production supported
Thickness Range: Standard thicknesses include 5mm, 6mm, 8mm, 10mm, and 12mm; other thicknesses can be customized as per project needs
Color Options: Available in clear, gray, blue, green, and more; custom colors can be produced upon request
Processing Options: Edge finishing (grinding, polishing), coating, silk-screen printing, UV protection, and other treatments available
Description
| Thickness | 3mm-30mm | Application | Industrial, Curtain Wall, Exterior, Outdoor, Gym |
| Usage | Industrial, Medical , Decoration, Solar, Greenhouse, Curtain Wall, Balustrades & Handrails, Image formation, Bulletproof | Material | Insulated Glass |
| Shape | Square | After-sale Service | Return and Replacement |
| Project Solution Capability | total solution for projects | Structure | Solid, Hollow |
| Product Type | riple Glazed Insulated Glass Units (Triple Pane IGU) | Configuration | 4+12Ar+4+12Ar+4 Low-E / 4+12Kr+4+12Kr+4 (dual Low-E) |
| Low-E Coatings | Dual soft coat Low-E (positions #2 and #5) | Gas Fill | Argon or krypton gas filled |
| U-Value | ≤0.8 W/(m²-K) (krypton) / ≤1.0 (argon) | SHGC | 0.35–0.55 (configurable for solar gain strategy) |
| Spacer | Warm edge spacer (TGI / Swisspacer) | VLT | 65%–72% |
| Sound Reduction (Rw) | Hotel, office building, hospital, airport, urban residential | Certification | 38–44 dB (asymmetric configuration) |
Customization Process
Step 1: Requirement Communication
The client provides project requirements, dimensions, thickness, color, and any special processing needs to ensure the product meets expectations.
Step 2: Design Plan
We create a customization plan based on client requirements and, if needed, provide design drawings or sample confirmation.
Step 3: Quotation and Confirmation
We provide a detailed quotation, and upon client confirmation, sign a contract to finalize order details and delivery time.
Step 4: Production
The production phase begins with glass cutting, processing, and treatments strictly following the agreed specifications to ensure quality.
Step 5: Quality Check and Packaging
After production, we conduct a thorough quality check and package the approved products to prevent damage during transportation.
Step 6: Delivery and After-Sales
Products are shipped as scheduled, with after-sales support available for any further assistance needed by the client.
