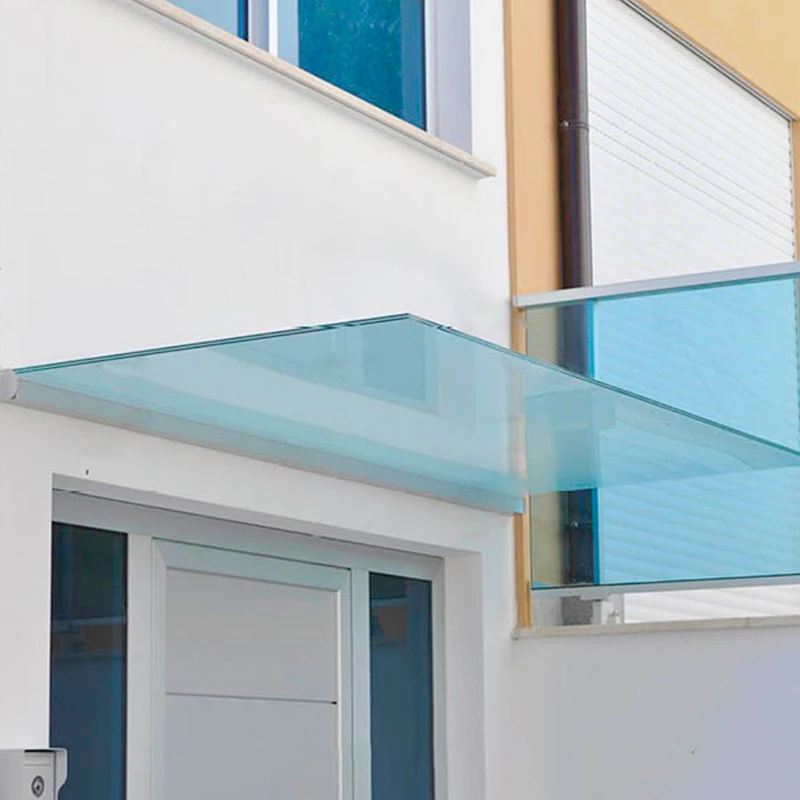

Overhang Under 1500mm Glass Canopy
We offer high-standard customization services to ensure each product meets your specific requirements, making us a trusted supplier for your architectural glass needs.
Dimensions: Customizable according to client requirements, OEM production supported
Thickness Range: Standard thicknesses include 5mm, 6mm, 8mm, 10mm, and 12mm; other thicknesses can be customized as per project needs
Color Options: Available in clear, gray, blue, green, and more; custom colors can be produced upon request
Processing Options: Edge finishing (grinding, polishing), coating, silk-screen printing, UV protection, and other treatments available
Description
| frame material | Aluminum alloy | Sail Material | Glass |
| operation method | Manual | feature | Windproof |
| sail finishing | PVB Coated | type | Awnings |
| Profile Visible Width | 122mm | Glass Embedding Depth | 122mm |
| Glass Specification | 10+1.52pvb+10mm laminated tempered | Optional Upgrade | Ultra-clear glass |
| Slope | 3° (standard) | Dimension1 | The overhang should not exceed 1050mm |
| Dimension2 | Unit width should not exceed 3000mm | Constuction Material | concrete or reinforced concrete |
| The Floors | should not higher than the Seventh floor | Application | Rainproof and windproof |
Customization Process
Step 1: Requirement Communication
The client provides project requirements, dimensions, thickness, color, and any special processing needs to ensure the product meets expectations.
Step 2: Design Plan
We create a customization plan based on client requirements and, if needed, provide design drawings or sample confirmation.
Step 3: Quotation and Confirmation
We provide a detailed quotation, and upon client confirmation, sign a contract to finalize order details and delivery time.
Step 4: Production
The production phase begins with glass cutting, processing, and treatments strictly following the agreed specifications to ensure quality.
Step 5: Quality Check and Packaging
After production, we conduct a thorough quality check and package the approved products to prevent damage during transportation.
Step 6: Delivery and After-Sales
Products are shipped as scheduled, with after-sales support available for any further assistance needed by the client.
