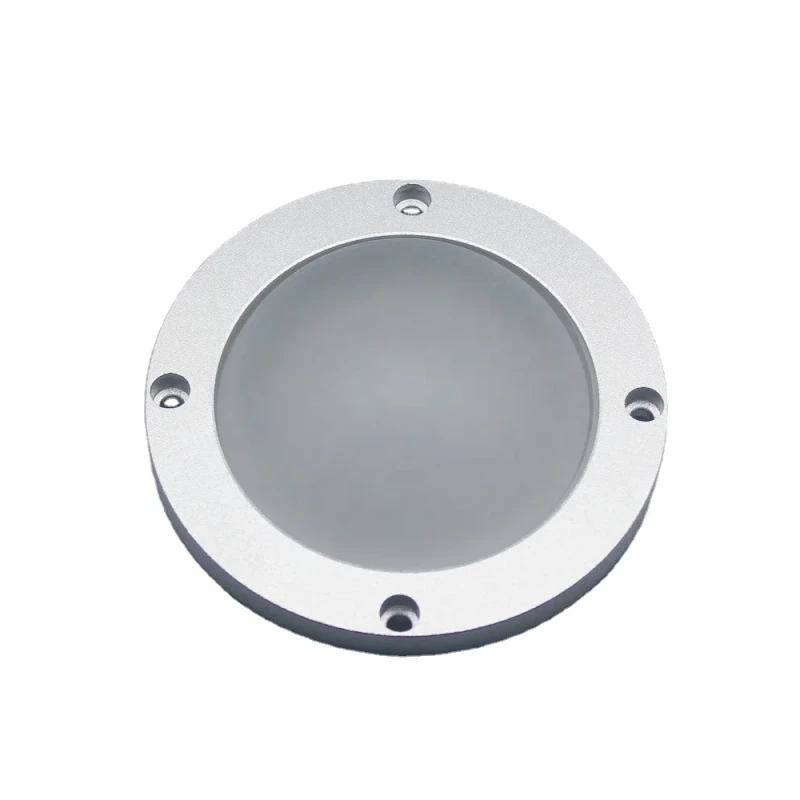

Indoor Lighting Sandblast Frosted Glass COB LED Diffuser Lens 78mm 120degree
We offer high-standard customization services to ensure each product meets your specific requirements, making us a trusted supplier for your architectural glass needs.
Dimensions: Customizable according to client requirements, OEM production supported
Thickness Range: Standard thicknesses include 5mm, 6mm, 8mm, 10mm, and 12mm; other thicknesses can be customized as per project needs
Color Options: Available in clear, gray, blue, green, and more; custom colors can be produced upon request
Processing Options: Edge finishing (grinding, polishing), coating, silk-screen printing, UV protection, and other treatments available
Description
| Suitable Led | cob led | Beam Angle | 120° |
| Material | Borosilicate | Transmittance | > 90% |
| IP Rating | IP65 | Structure | Concave-Convex |
| Optical Pattern | Wide | Shape | Round |
| Type | Lamp Cups | Application | Led Lighting |
| Warranty(Year) | 5-Year | Pattern | Aspheric |
| Temperature Resistance | -50°C To 550°C | Usage | for led light |
| Product Weight（kg） | 0.3 | Refractive Index | 1.474 |
| Certificates | RoHS | Temperature Resistance | -50~+550 Celsius Degrees |
| Color | Frosted | Suitable led | LES 11-35MM |
| Kit | Glass Lens+holder+gasket | Efficiency | 90%-92% |
| Surface | sandblasted | Style | Diffuser Lens |
| Application | Indoor Lighting Outdoor Lighting |
Customization Process
Step 1: Requirement Communication
The client provides project requirements, dimensions, thickness, color, and any special processing needs to ensure the product meets expectations.
Step 2: Design Plan
We create a customization plan based on client requirements and, if needed, provide design drawings or sample confirmation.
Step 3: Quotation and Confirmation
We provide a detailed quotation, and upon client confirmation, sign a contract to finalize order details and delivery time.
Step 4: Production
The production phase begins with glass cutting, processing, and treatments strictly following the agreed specifications to ensure quality.
Step 5: Quality Check and Packaging
After production, we conduct a thorough quality check and package the approved products to prevent damage during transportation.
Step 6: Delivery and After-Sales
Products are shipped as scheduled, with after-sales support available for any further assistance needed by the client.
