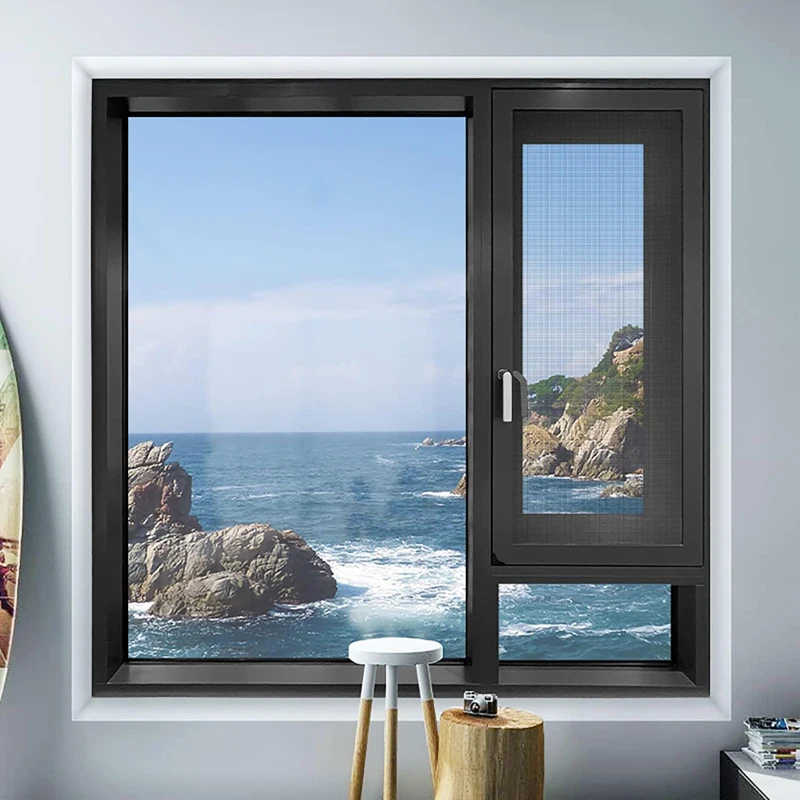

European Tilt Turn Window Fly Screen German Windows Tilt and Turn Double Glazed Window for Bathroom
We offer high-standard customization services to ensure each product meets your specific requirements, making us a trusted supplier for your architectural glass needs.
Dimensions: Customizable according to client requirements, OEM production supported
Thickness Range: Standard thicknesses include 5mm, 6mm, 8mm, 10mm, and 12mm; other thicknesses can be customized as per project needs
Color Options: Available in clear, gray, blue, green, and more; custom colors can be produced upon request
Processing Options: Edge finishing (grinding, polishing), coating, silk-screen printing, UV protection, and other treatments available
Description
| Glass Type | Tempered Glass, Low-E Glass, triple insulated glass, double tempered glass, double pane tempered clear glass | Frame Material | Aluminum alloy |
| Function | insect control | Open Style | Swing |
| Energy Star Qualified | Yes | Material | Aluminum |
| Design Style | Modern | Application | Kitchen, Bathroom, Bedroom, Home Office, Living Room, Office Building, Villa, Hospital |
| Screen Netting Material | Stainless Steel | After-sale Service | Return and Replacement, Online Technical Support, Free Spare Parts, Onsite Installation, Onsite Inspection |
| Feature | Magnetic Screen | Opening Pattern | VERTICAL |
| Project Solution Capability | graphic design, total solution for projects | Curtain Type | hanging |
| Installation | Easy To Operate | Type | Tilt and Turn window |
| Door Type | Glass | aluminum profile | 1.8mm |
| Color | Customized Colors | Hardware | STORO heavy duty hinge and locks, (Load-bearing capacity ≥ 100kg |
| Glass | 5mm+12A+5mm+12A+5mm three-glass two-cavity insulated glass | Profile | 6063-T5 Thermal Break Aluminum 1.8mm, PA66 Insulation Strip |
| Insulation Strip | EPDM 35.3mm width | Hidden drainge | with anti-backflow clips |
| Sealing | closed in a full circle without splicing gaps | Glass sealing | double sealing with butyl rubber + structural adhesive |
| Surface | Powder Coating | Glass upgrade | Low-E, Laminated, Argon filled |
Customization Process
Step 1: Requirement Communication
The client provides project requirements, dimensions, thickness, color, and any special processing needs to ensure the product meets expectations.
Step 2: Design Plan
We create a customization plan based on client requirements and, if needed, provide design drawings or sample confirmation.
Step 3: Quotation and Confirmation
We provide a detailed quotation, and upon client confirmation, sign a contract to finalize order details and delivery time.
Step 4: Production
The production phase begins with glass cutting, processing, and treatments strictly following the agreed specifications to ensure quality.
Step 5: Quality Check and Packaging
After production, we conduct a thorough quality check and package the approved products to prevent damage during transportation.
Step 6: Delivery and After-Sales
Products are shipped as scheduled, with after-sales support available for any further assistance needed by the client.
