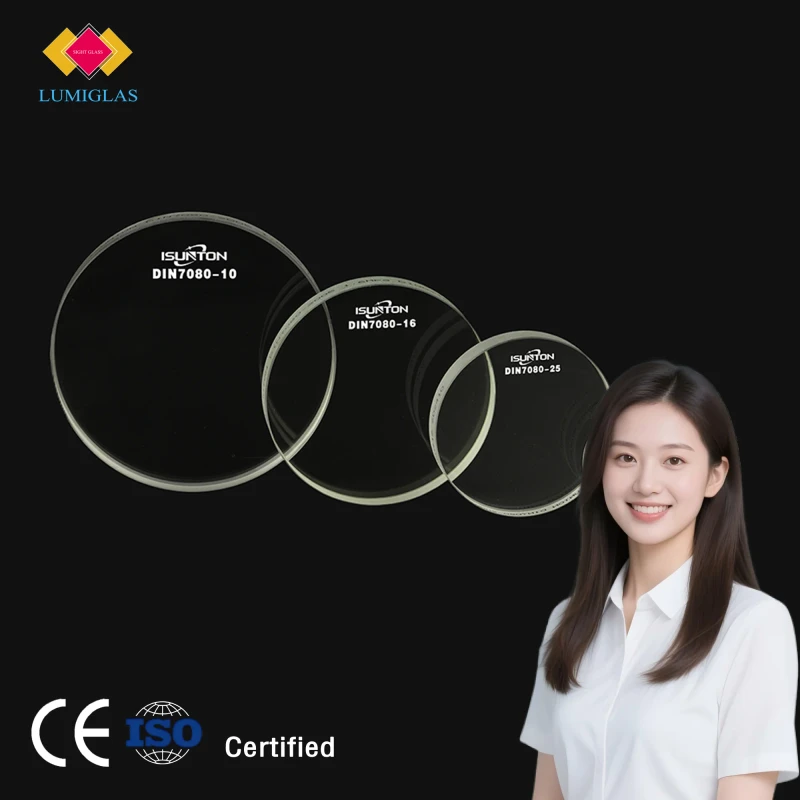

DIN 7080 Borosilicate Round Sight Glass for Pressure Vessel
We offer high-standard customization services to ensure each product meets your specific requirements, making us a trusted supplier for your architectural glass needs.
Dimensions: Customizable according to client requirements, OEM production supported
Thickness Range: Standard thicknesses include 5mm, 6mm, 8mm, 10mm, and 12mm; other thicknesses can be customized as per project needs
Color Options: Available in clear, gray, blue, green, and more; custom colors can be produced upon request
Processing Options: Edge finishing (grinding, polishing), coating, silk-screen printing, UV protection, and other treatments available
Description
| Type | Tempered Glass | Application | sight glass |
| Composition | borosilicate | Temperature resistance | -100℃/+280℃ |
| pressure resistant performance | 40Bar | Thermal Shock | ≥230℃ |
| burst strength | ≥100N/mm 2 | water resistance | DIN ISO 719 HBG 1 |
| Acid resistance | DIN ISO695:A2 | bending strength | Tempered >100N/mm 2 |
| Surface Quality | No bubbles, stripes, stones, impurities | Execution standards | DIN7080-25(Provide EN10204-3.1 certificate) |
| Coefficient of expansion | ≤5.0*10-6k-1 |
Customization Process
Step 1: Requirement Communication
The client provides project requirements, dimensions, thickness, color, and any special processing needs to ensure the product meets expectations.
Step 2: Design Plan
We create a customization plan based on client requirements and, if needed, provide design drawings or sample confirmation.
Step 3: Quotation and Confirmation
We provide a detailed quotation, and upon client confirmation, sign a contract to finalize order details and delivery time.
Step 4: Production
The production phase begins with glass cutting, processing, and treatments strictly following the agreed specifications to ensure quality.
Step 5: Quality Check and Packaging
After production, we conduct a thorough quality check and package the approved products to prevent damage during transportation.
Step 6: Delivery and After-Sales
Products are shipped as scheduled, with after-sales support available for any further assistance needed by the client.
